পণ্যের বিবরণ:
প্রদান:
|
| Item: | Wear-resistant screens mesh cloth 1.8mm dia ,3mm hole ,3m width for sieve applications | Material: | High tensile spring steel, manganese steel, stainless steel, polyurethane.high carbon steel is better choice for anti-friction |
|---|---|---|---|
| Technology: | wire crimped cut and machine weaving | Wire diameter range: | 0.7mm-12.8mm |
| Aperture: | 0.45mm-150mm | Width: | 1-6m |
| Length: | 1-200m ( sheet : 2m ) , roll (200m) | Edge preparation: | plain or without special edge treament Bending hook hook with wrap plate |
| বিশেষভাবে তুলে ধরা: | 3 মিটার প্রস্থের স্ক্রিন জাল কাপড়,1.8 মিমি ডায়া স্ক্রিন জাল কাপড়,3 মিমি গর্ত স্ক্রিন জাল কাপড় |
||
পরিধান-প্রতিরোধী স্ক্রিন জাল কাপড় 1.8 মিমি ব্যাসার্ধ, 3 মিমি গর্ত, 3 মিটার প্রশস্ততা সিভ অ্যাপ্লিকেশন জন্য
বর্ণনাঃ
আমাদের একটাবড় স্টকজন্য তারের ব্যাসার্ধ 1.8mm, এবং প্রান্তিক 3mm, 2.5mm সঙ্গে 1-5m প্রস্থ! উপাদান কালো ইস্পাত বা Mn ইস্পাত বা স্টেইনলেস স্টীল হতে পারে! পরিধান-প্রতিরোধী পর্দা জাল কাপড় রোল বা শীট হতে পারে
দ্রুত বিবরণঃ
ডিসপ্লেঃ0.৫-১৫০ মিমি
তারের ব্যাসার্ধঃ0.6mm-12.8mm
উপাদান:উচ্চ কার্বন ইস্পাত, স্টেইনলেস স্টীল
প্রকারঃশীট বা রোল.
স্ক্রিন জাল প্যারামিটারঃ কাস্টমাইজড উপলব্ধ!
| খোলার ক্ষমতা (মিমি) | তারের আকার (মিমি) | ওজন কেজি/মি২ | খোলার ক্ষমতা (মিমি) | তারের আকার (মিমি) | ওজন কেজি/মি২ | খোলার ক্ষমতা (মিমি) | তারের আকার (মিমি) | ওজন কেজি/মি২ | খোলার ক্ষমতা (মিমি) | তারের আকার (মিমি) | ওজন কেজি/মি২ |
| 3 | 2 | 10.16 | 12.5 | 4 | 12.32 | 26.99 | 5.72 | 12.7 | 75 | 11.2 | 18.48 |
| 3.15 | 1.4 | 5.47 | 12.5 | 5 | 18.14 | 26.99 | 6.3 | 15.14 | 75 | 12.5 | 22.68 |
| 3.15 | 2 | 9.86 | 12.7 | 3.05 | 7.5 | 28 | 5 | 9.62 | 76.2 | 9.53 | 24.22 |
| 3.18 | 1.22 | 4.3 | 12.7 | 3.76 | 10.91 | 28 | 6.3 | 14.7 | 76.2 | 9.53 | 13.45 |
| 3.18 | 1.37 | 5.24 | 12.7 | 4.11 | 12.76 | 28 | 8 | 22.58 | 76.2 | 12.7 | 23.04 |
| 3.18 | 1.83 | 8.49 | 12.7 | 4.5 | 14.95 | 28.58 | 5.72 | 12.11 | 80 | 10 | 14.11 |
| 3.18 | 2.03 | 10.05 | 12.7 | 4.88 | 17.2 | 28.58 | 6.3 | 14.45 | 80 | 12.5 | 21.45 |
| 3.18 | 2.34 | 12.6 | 12.7 | 5.26 | 19.56 | 28.58 | 7.94 | 21.92 | 80 | 12.5 | 37.8 |
| 3.18 | 2.67 | 15.48 | 13.2 | 3.15 | 7.71 | 30 | 4 | 5.98 | 85 | 11.2 | 16.56 |
| 3.35 | 2 | 9.5 | 13.2 | 4 | 11.81 | 30 | 5 | 9.07 | 90 | 12.5 | 19.36 |
| 3.75 | 2 | 8.83 | 13.2 | 5 | 17.45 | 30 | 6.3 | 13.89 | 100 | 11.2 | 14.33 |
| 3.75 | 2.5 | 12.7 | 14 | 2.5 | 4.81 | 30 | 7.1 | 17.26 | 100 | 12.5 | 17.64 |
| 3.97 | 3.05 | 16.83 | 14 | 4 | 11.29 | 30 | 8 | 21.39 | 101.6 | 12.7 | 17.92 |
| 4 | 2 | 8.47 | 14 | 5 | 16.71 | 30 | 10 | 31.75 | 125 | 12.5 | 14.43 |
| 4 | 2.5 | 12.21 | 14 | 5 | 16.71 | 30 | 10 | 31.75 | 150 | 12.5 | 12.21 |
| 4 | 3.15 | 17.62 | 14 | 6.3 | 24.83 | 31.5 | 5 | 8.7 | 150 | 12.5 | 22.68 |
| 4.35 | 2 | 8 | 14.29 | 4.11 | 11.66 | 31.5 | 6.3 | 13.34 | |||
| 4.5 | 2.5 | 11.34 | 14.29 | 4.88 | 15.78 | 31.5 | 7.1 | 16.59 | |||
| 4.5 | 2.8 | 13.64 | 14.29 | 5.26 | 17.97 | 31.5 | 8 | 20.58 | |||
| 4.5 | 3.15 | 16.47 | 14.29 | 5.72 | 20.77 | 31.5 | 8 | 20.58 | |||
| 4.75 | 2 | 7.53 | 15 | 5 | 15.88 | 31.5 | 10 | 30.6 | |||
| 4.75 | 2.8 | 13.19 | 15 | 6.3 | 23.66 | 31.5 | 11.2 | 37.31 | |||
| 4.75 | 3.15 | 15.95 | 15 | 8 | 35.34 | 31.5 | 12.5 | 45.1 | |||
| 4.76 | 2.03 | 7.71 | 15.88 | 4.11 | 10.73 | 31.5 | 12.5 | 45.1 | |||
| 4.76 | 2.34 | 9.79 | 15.88 | 4.88 | 14.57 | 31.75 | 6.3 | 13.25 | |||
| 4.76 | 2.67 | 12.19 | 15.88 | 5.26 | 16.62 | 31.75 | 7.19 | 16.86 | |||
| 4.76 | 3.05 | 15.13 | 15.88 | 5.72 | 19.24 | 31.75 | 7.94 | 20.17 | |||
| 4.76 | 3.43 | 18.24 | 15.88 | 6.3 | 22.73 | 31.75 | 9.53 | 27.94 | |||
| 5 | 1.6 | 4.93 | 16 | 4 | 10.16 | 31.75 | 10.01 | 30.47 | |||
| 5 | 2 | 7.26 | 16 | 5 | 15.12 | 31.75 | 11.11 | 36.57 | |||
| 5 | 2.5 | 10.58 | 16 | 5.6 | 18.44 | 34.93 | 4 | 5.22 | |||
| 5 | 2.8 | 12.77 | 16 | 6.3 | 22.6 | 34.93 | 6.3 | 12.23 | |||
| 5 | 3.15 | 15.46 | 16 | 8 | 33.87 | 34.93 | 7.94 | 18.68 | |||
| 5.3 | 2.5 | 10.18 | 16.5 | 2.5 | 4.18 | 34.93 | 11.11 | 34.05 | |||
| 5.3 | 3.15 | 14.91 | 17.46 | 3.05 | 5.76 | 35.5 | 8 | 18.69 | |||
| 5.56 | 2.67 | 11 | 17.46 | 3.76 | 8.46 | 35.5 | 10 | 27.91 | |||
| 5.56 | 3.05 | 13.72 | 17.46 | 4.88 | 13.54 | 35.5 | 12.5 | 41.34 | |||
| 5.6 | 2.8 | 11.85 | 17.46 | 6.3 | 21.21 | 35.5 | 12.5 | 41.34 | |||
| 5.6 | 3.15 | 14.4 | 18 | 4 | 9.24 | 37.5 | 7.1 | ||||
| 6 | 2 | 6.35 | 18 | 5 | 13.8 | 37.5 | 8 | 17.86 | |||
| 6 | 2.5 | 9.34 | 18 | 6.3 | 20.74 | 38.1 | 7.19 | 14.5 | |||
| 6 | 3.15 | 13.77 | 18 | 8 | 31.26 | 38.1 | 7.94 | 17.39 | |||
| 6.3 | 2 | 6.12 | 19 | 2.8 | 4.57 | 38.1 | 9.53 | 24.22 | |||
| 6.3 | 2.5 | 9.02 | 19 | 5 | 13.23 | 38.1 | 9.53 | 24.22 | |||
| 6.3 | 3.15 | 13.34 | 19 | 5.6 | 16.19 | 38.1 | 10.01 | 26.45 | |||
| 6.3 | 4 | 19.73 | 19 | 6.3 | 19.92 | 38.1 | 11.11 | 31.86 | |||
| 6.35 | 2.34 | 8 | 19.05 | 3.05 | 5.35 | 38.1 | 12.7 | 40.32 | |||
| 6.35 | 2.67 | 10.04 | 19.05 | 4.88 | 12.64 | 38.1 | 12.7 | 40.32 | |||
| 6.35 | 3.05 | 12.57 | 19.05 | 5.26 | 14.45 | 40 | 4 | 4.62 | |||
| 6.35 | 3.43 | 15.28 | 19.05 | 5.72 | 16.78 | 40 | 8 | 16.93 | |||
| 6.35 | 4.11 | 20.51 | 19.05 | 6.3 | 19.88 | 40 | 8 | 16.93 | |||
| 6.47 | 2 | 6 | 19.05 | 6.3 | 19.88 | 40 | 10 | 25.4 | |||
| 6.7 | 3.15 | 12.79 | 19.05 | 7.94 | 29.66 | 40 | 10 | 25.4 | |||
| 6.87 | 1.6 | 3.84 | 20 | 5 | 12.7 | 40 | 12.5 | 37.8 | |||
| 7.1 | 2.5 | 8.27 | 20 | 6.3 | 19.17 | 40 | 12.5 | 37.8 | |||
| 7.1 | 2.8 | 10.06 | 20 | 6.3 | 19.17 | 41.28 | 11.11 | 29.92 | |||
| 7.1 | 3.15 | 12.29 | 20 | 8 | 29.03 | 42.5 | 7.1 | 12.91 | |||
| 7.1 | 4 | 18.31 | 20.6 | 2.8 | 4.26 | 42.5 | 8 | 16.1 | |||
| 7.5 | 3.15 | 11.83 | 20.6 | 6.3 | 18.74 | 44.45 | 7.19 | 12.71 | |||
| 7.94 | 3.43 | 13.14 | 21.2 | 6.3 | 18.33 | 44.45 | 9.53 | 21.37 | |||
| 7.94 | 3.76 | 15.35 | 21.2 | 6.3 | 18.33 | 45 | 6.3 | 9.83 | |||
| 7.94 | 4.11 | 17.8 | 21.2 | 7.1 | 22.62 | 45 | 8 | 15.34 | |||
| 7.94 | 4.88 | 23.59 | 21.7 | 6.3 | 18 | 45 | 10 | 23.09 | |||
| 8 | 2.5 | 7.56 | 22.23 | 4.88 | 11.16 | 45 | 10 | 23.09 | |||
| 8 | 3.15 | 11.3 | 22.23 | 5.26 | 12.78 | 45 | 12.5 | 34.51 | |||
| 8 | 4 | 16.93 | 22.23 | 5.72 | 14.87 | 45 | 12.5 | 34.51 | |||
| 8.5 | 4 | 16.26 | 22.23 | 6.3 | 17.67 | 47.5 | 8 | 14.65 | |||
| 9 | 2.5 | 6.9 | 22.23 | 6.3 | 17.67 | 50 | 8 | 14.01 | |||
| 9 | 3.15 | 10.37 | 22.23 | 7.19 | 22.32 | 50 | 10 | 21.17 | |||
| 9 | 4 | 15.63 | 22.23 | 7.94 | 26.54 | 50 | 10 | 21.17 | |||
| 9.5 | 2.5 | 6.61 | 22.25 | 3.15 | 4.96 | 50 | 12.5 | 31.75 | |||
| 9.5 | 2.8 | 8.09 | 22.4 | 5.6 | 14.22 | 50 | 12.5 | 31.75 | |||
| 9.5 | 3.15 | 9.96 | 22.4 | 6.3 | 17.56 | 50.8 | 7.94 | 13.63 | |||
| 9.5 | 4 | 15.05 | 22.4 | 6.3 | 17.56 | 50.8 | 9.53 | 19.12 | |||
| 9.53 | 3.43 | 11.53 | 22.4 | 7.1 | 21.7 | 50.8 | 9.53 | 19.12 | |||
| 9.53 | 3.76 | 13.51 | 22.4 | 8 | 26.74 | 50.8 | 9.53 | 33.03 | |||
| 9.53 | 4.11 | 15.73 | 22.4 | 8 | 26.74 | 50.8 | 10 | 20.89 | |||
| 9.53 | 4.88 | 20.99 | 22.4 | 10 | 39.2 | 50.8 | 12.7 | 32.26 | |||
| 9.53 | 6.3 | 31.84 | 23.6 | 5 | 11.1 | 53 | 8 | 13.32 | |||
| 9.7 | 3 | 9 | 23.6 | 6.3 | 16.86 | 53 | 10 | 20.16 | |||
| 10 | 3.15 | 9.58 | 23.81 | 5.26 | 12.09 | 56 | 8 | 12.7 | |||
| 10 | 4 | 14.51 | 23.81 | 5.72 | 14.07 | 56 | 10 | 19.24 | |||
| 10 | 5 | 21.17 | 23.81 | 7.94 | 25.22 | 56 | 11.2 | 23.71 | |||
| 10 | 6.3 | 30.92 | 25 | 3.15 | 4.48 | 56 | 12.5 | 28.97 | |||
| 10.2 | 2.5 | 6.25 | 25 | 3.15 | 4.48 | 57.15 | 10.01 | 18.95 | |||
| 10.7 | 2 | 4 | 25 | 4 | 7.01 | 60 | 8 | 11.95 | |||
| 10.6 | 4 | 13.92 | 25 | 6.3 | 16.1 | 60 | 10 | 18.14 | |||
| 10.6 | 6.3 | 29.83 | 25 | 6.3 | 16.1 | 60 | 11.2 | 22.37 | |||
| 11.11 | 4.5 | 16.48 | 25 | 8 | 24.63 | 63 | 10 | 17.4 | |||
| 11.11 | 4.88 | 18.91 | 25 | 8 | 24.63 | 63 | 11.2 | 21.47 | |||
| 11.2 | 2.8 | 7.11 | 25 | 10 | 36.29 | 63.5 | 7.94 | 11.21 | |||
| 11.2 | 3.15 | 8.78 | 25.4 | 3.05 | 4.15 | 63.5 | 12.7 | 26.88 | |||
| 11.2 | 4 | 13.37 | 25.4 | 5.26 | 11.46 | 65 | 8 | 11.13 | |||
| 11.2 | 5 | 19.6 | 25.4 | 5.72 | 13.35 | 65 | 10 | 16.93 | |||
| 11.8 | 2.5 | 5.55 | 25.4 | 6.3 | 15.9 | 65 | 12.5 | 25.6 | |||
| 11.8 | 3.15 | 8.43 | 25.4 | 7.94 | 24.01 | 67 | 12.5 | 24.96 | |||
| 11.8 | 4 | 12.86 | 25.4 | 9.53 | 33.02 | 71 | 8 | 10.29 | |||
| 11.8 | 5 | 18.9 | 25.4 | 10.01 | 35.94 | 71 | 10 | 15.68 | |||
| 11.8 | 6.3 | 27.85 | 26.5 | 6.3 | 15.37 | 71 | 11.2 | 19.38 | |||
| 12.5 | 3.15 | 8.05 | 26.5 | 8 | 23.56 | 75 | 10 | 14.94 |
প্রচলিত অ্যাপ্লিকেশন:
বিজ্ঞপ্তি:
আমাদের স্ট্যান্ডার্ড পণ্য ছাড়াও, আমরা কাস্টম বুনন পণ্য প্রস্থ, দৈর্ঘ্য, ধরনের, আকৃতি, আকার,আপনার স্পেসিফিকেশন বা সরঞ্জামের সীমাবদ্ধতার উপর ভিত্তি করে আপনার প্রয়োজনীয় পরিমাণ এবং সমন্বয়.

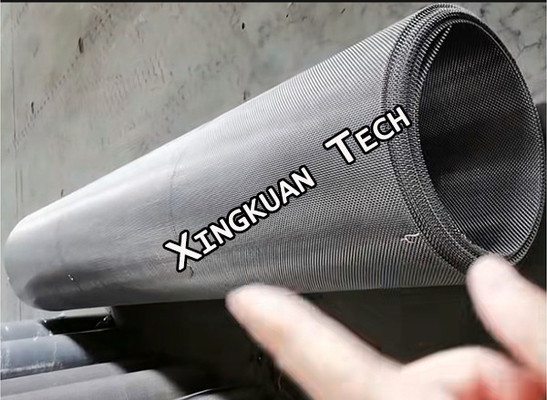

নীচে তারের ব্যাসার্ধ 1.8 মিমি, ডিপার্চার / খোলার -3 মিমি, প্রস্থ -3 মিমি, দৈর্ঘ্য -30 মি, অবস্থাঃ রোল (ফ্লেক এছাড়াও উপলব্ধ) ।
